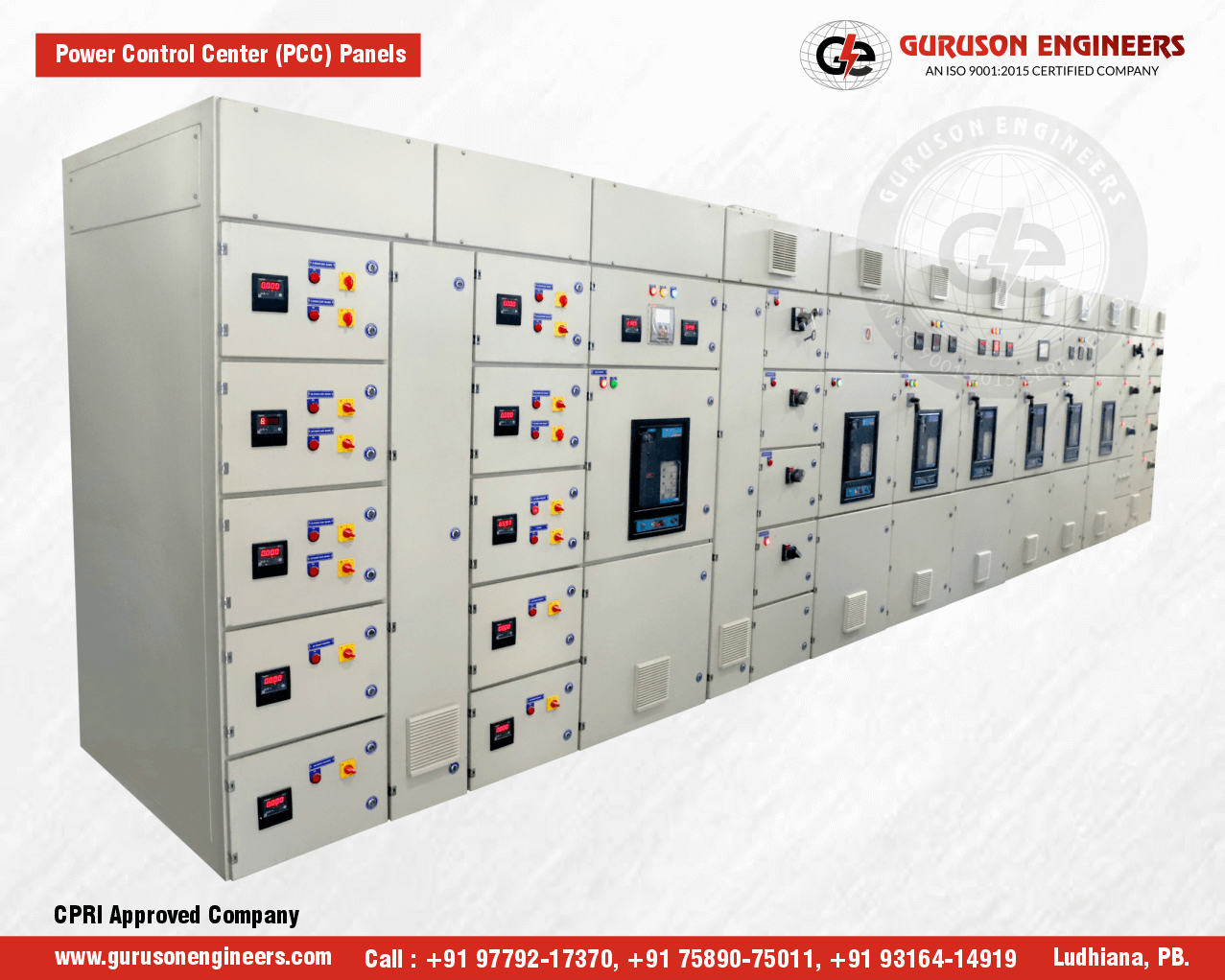

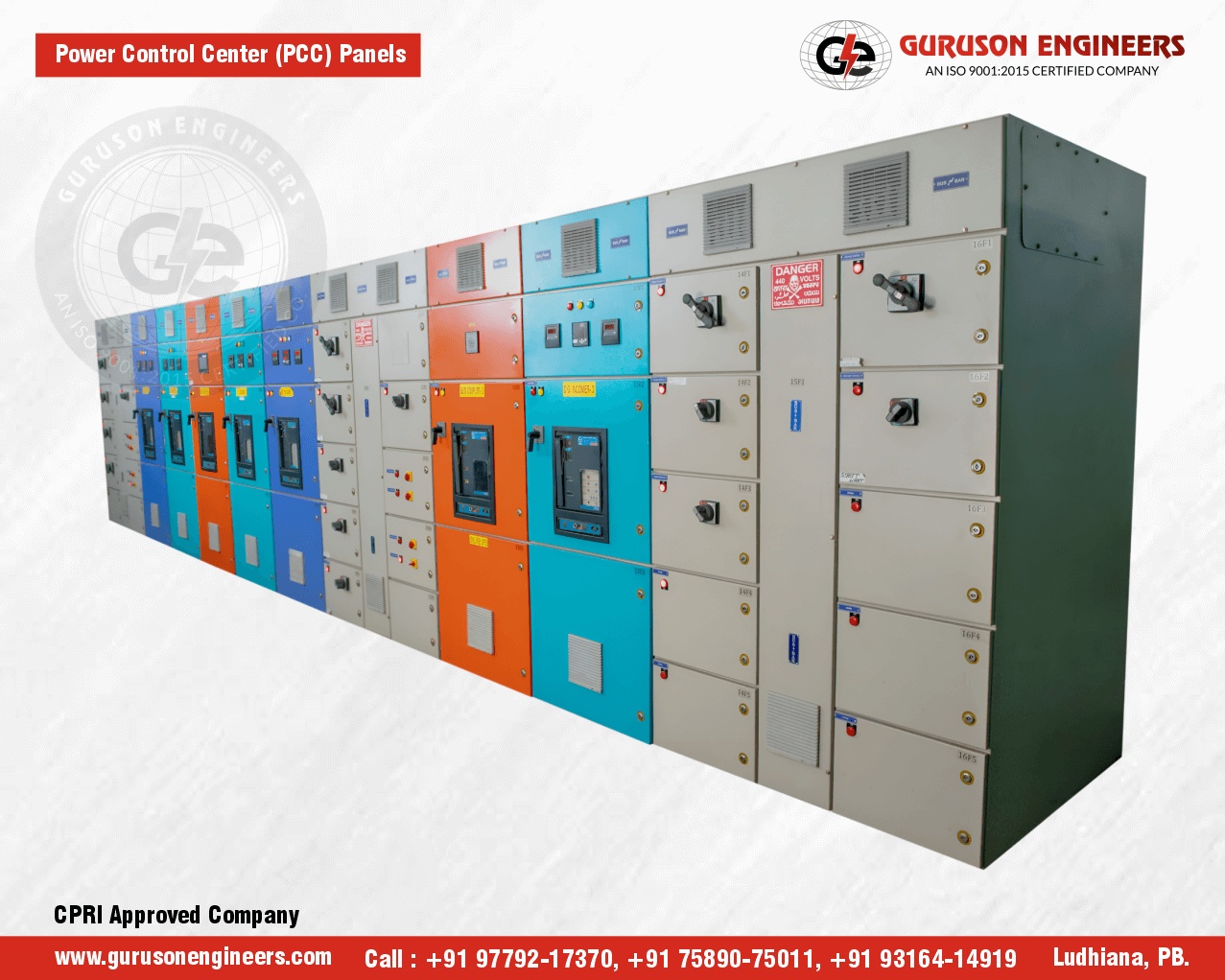

Power control centre (pcc) panels
Our Power Control Center (PCC) Panels are engineered to deliver dependable and efficient power distribution solutions for a wide range of industrial applications. With meticulous design and high-quality components, our panels guarantee uninterrupted power supply, enabling smooth operation of your critical systems. PCC Panels serve as the backbone of industrial electrical systems, offering centralized control and monitoring capabilities. Our panels are meticulously designed and rigorously tested to ensure optimal performance, making them the cornerstone of your facility's power infrastructure.
Tailored Solutions for Every Industry:
From manufacturing plants to commercial facilities, our PCC Panels are designed to meet the diverse needs of various industries. Whether you require standard configurations or custom-built solutions, our team is dedicated to providing you with reliable and effective distribution services tailored to your specific requirements.
Maximizing Efficiency and Safety:
With advanced control systems and comprehensive safety features, our PCC Panels are engineered to maximize efficiency and safety in your industrial operations. From load monitoring to fault detection, our panels offer robust protection for both personnel and equipment, ensuring smooth and secure power distribution.
Construction features: The panel will be metal enclosed, sheet steel cubical pattern, extendable type dead front, floor / wall mounting type & suitable for indoor / outdoor mounting.
The panel boards will be totally enclosed type, dust and vermin proof. Synthetic rubber gasket between all adjacent units and beneath all covers will be provided to render the just and vermin proof to provide a degree of protection of IP 45. All doors and covers will be fully gasketed with synthetic rubber and will be lockable.
The panel boards will be fabricated with CRCA sheet steel of thickness not less than 1.6 / 2.0 mm and will be folder and braced as necessary to provide a rigid for all components. The doors and covers will be constructed from CRCA sheet steel of thickness 1.6 mm. Joints of any kind in sheet metal will be elect. Welded and all welding slag ground off and welding pit wiped smooth plumber metal.
All panels and covers will be properly fitted and square with the frame. The holes in the panel will be correctly positioned.
Fixing screws will enter holes tapped into an adequate thickness of metal or provided with hank nuts. Self-threading screws will not be used in the construction of the switchboards.
Different type of harnesses are being used for various starters meter wiring etc, as per IS-8623 standards. All components/instruments in the panel are leveled with proper marking which enable even a layman to repair the equipments. The standard harnesses enable easy inter-changeability of feeders 1 / 1.5 sq mm copper flexible wire is used for control wiring. All cable ends are thimbled and starters are wired up to ready to use termination point.
Different type of harnesses are being used for All panels shall be completely factory wire ready for connecting to the equipment. All control wiring will be done by PVC insulated copper wire of sizes 1 / 1.5 sq mm fitted with identifications color ferrules Termination of wires on the both ends will be by using cable lugs wiring shall be properly dressed bunched and supported by āPā clips.
The doors are designed specially to provide total sealing. The door hinges are designed to accommodate the door on easily recoverable and replaceable pins with soft rubber gaskets for complete dust proof sealing.
The cubicles are chemically treated with pretreatment chemical i.e derusting, pickling and phosphating prior to two coats of zinc chromate with red oxide primer with putty work and with two final coats of light grey shade No. RAL 7032 or approved shade of customers. Each coat of paint well be properly stove & paint thickness will be not less than 60 to 80 microns.
All accessories used are of reputed makes companies and have been selected after vigorous scrutiny standards ensuring long life performance.
